Slack

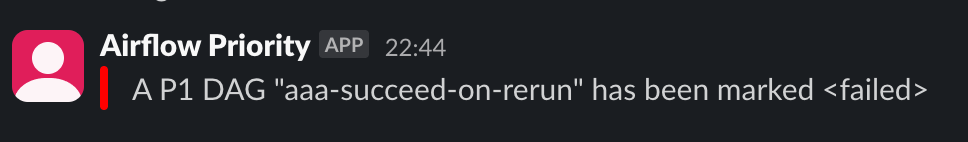

Message in Slack reflecting DAG status

Slack integration will create new messages when a DAG fails, and optionally update those messages when a DAG reruns/succeeds.

Setup

Configure a new slack application following the Slack Quickstart.

Ensure your application has the following scopes for public and private channel access:

  • channels:read

  • groups:read

  • chat:write

Enable and install your Slack application into your workspace, and add it as an integration in whatever channel you want it to post.

Copy your Slack application’s Oauth Token (starting with xoxb-) somewhere secure.

Configuration

  • token: (Required) the OAuth token from above

  • channel: (Required) channel name to send messages to

  • threshold: (Optional) Maximum alert threshold. Alerts with higher numerical priority (lower logical priority) will be ignored

  • update_message: (Optional) Update a failure message with running/succeeds. Defaults to false

  • send_running: (Optional) Send new messages when a DAG starts running. Defaults to false

  • send_success: (Optional) Send new messages when a DAG succeeds. Defaults to false

  • failed_color: (Optional) Color of a DAG failed message

  • running_color: (Optional) Color of a DAG running message.

  • success_color: (Optional) Color of a DAG success message.

  • channel_P1: (Optional) P1 channel override

  • channel_P2: (Optional) P2 channel override

  • channel_P3: (Optional) P3 channel override

  • channel_P4: (Optional) P4 channel override

  • channel_P5: (Optional) P5 channel override

  • channel_failed: (Optional) Failed channel override

  • channel_success: (Optional) Success channel override

  • channel_running: (Optional) Running channel override

  • channel_failed_P1: (Optional) Failed P1 channel override

  • channel_failed_P2: (Optional) Failed P2 channel override

  • channel_failed_P3: (Optional) Failed P3 channel override

  • channel_failed_P4: (Optional) Failed P4 channel override

  • channel_failed_P5: (Optional) Failed P5 channel override

  • channel_success_P1: (Optional) Success P1 channel override

  • channel_success_P2: (Optional) Success P2 channel override

  • channel_success_P3: (Optional) Success P3 channel override

  • channel_success_P4: (Optional) Success P4 channel override

  • channel_success_P5: (Optional) Success P5 channel override

  • channel_running_P1: (Optional) Running P1 channel override

  • channel_running_P2: (Optional) Running P2 channel override

  • channel_running_P3: (Optional) Running P3 channel override

  • channel_running_P4: (Optional) Running P4 channel override

  • channel_running_P5: (Optional) Running P5 channel override

Example

[priority.slack]
token = xoxb-...
channel = channel-name

# Configure tag and priority specific channels
channel_P3 = ...
channel_failed_P1 = ...

Verbose updates

By default, only DAG failure events will be sent. On rerun, failure messages can be updated to reflect running/success.

The plugin can also be configured to always send updates, including when a DAG starts running and/or succeeds. These can also be configured to send to different channels.

[priority.slack]
# Update messages to reflect current state
update_message = true

send_success = true
channel_success = a-different-channel
send_running = true
channel_running = a-different-channel

Customizing message colors

[priority.slack]
failed_color = "#FF0000"
running_color = "#FFFF00"
success_color = "#00FF00"
