Discord

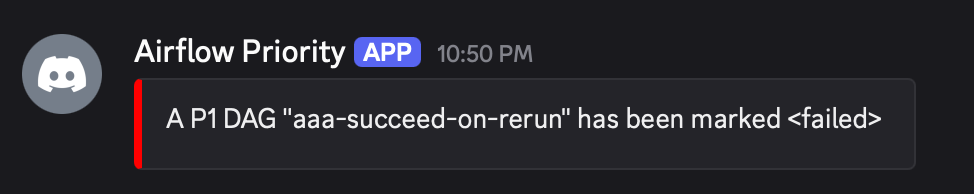

Message in Discord reflecting DAG status

Discord integration will create new messages when a DAG fails, and optionally update those messages when a DAG reruns/succeeds.

Setup

Create a new Discord application following the guide from the discord.py library.

Copy the bot token somewhere secure.

Configuration

  • token: (Required) the bot token from above

  • channel: (Required) channel name to send messages to

  • threshold: (Optional) Maximum alert threshold. Alerts with higher numerical priority (lower logical priority) will be ignored

  • update_message: (Optional) Update a failure message with running/succeeds. Defaults to false

  • send_running: (Optional) Send new messages when a DAG starts running. Defaults to false

  • send_success: (Optional) Send new messages when a DAG succeeds. Defaults to false

  • failed_color: (Optional) Color of a DAG failed message

  • running_color: (Optional) Color of a DAG running message.

  • success_color: (Optional) Color of a DAG success message.

  • channel_P1: (Optional) P1 channel override

  • channel_P2: (Optional) P2 channel override

  • channel_P3: (Optional) P3 channel override

  • channel_P4: (Optional) P4 channel override

  • channel_P5: (Optional) P5 channel override

  • channel_failed: (Optional) Failed channel override

  • channel_success: (Optional) Success channel override

  • channel_running: (Optional) Running channel override

  • channel_failed_P1: (Optional) Failed P1 channel override

  • channel_failed_P2: (Optional) Failed P2 channel override

  • channel_failed_P3: (Optional) Failed P3 channel override

  • channel_failed_P4: (Optional) Failed P4 channel override

  • channel_failed_P5: (Optional) Failed P5 channel override

  • channel_success_P1: (Optional) Success P1 channel override

  • channel_success_P2: (Optional) Success P2 channel override

  • channel_success_P3: (Optional) Success P3 channel override

  • channel_success_P4: (Optional) Success P4 channel override

  • channel_success_P5: (Optional) Success P5 channel override

  • channel_running_P1: (Optional) Running P1 channel override

  • channel_running_P2: (Optional) Running P2 channel override

  • channel_running_P3: (Optional) Running P3 channel override

  • channel_running_P4: (Optional) Running P4 channel override

  • channel_running_P5: (Optional) Running P5 channel override

[priority.discord]
token = the bot's token
channel = the numerical channel ID, from the url or by right clicking

# Configure tag and priority specific channels
channel_P3 = ...
channel_failed_P1 = ...

Ensure your bot is invited into any private channels.

Verbose updates

By default, only DAG failure events will be sent. On rerun, failure messages can be updated to reflect running/success.

The plugin can also be configured to always send updates, including when a DAG starts running and/or succeeds. These can also be configured to send to different channels.

[priority.discord]
# Update messages to reflect current state
update_message = true

send_success = true
channel_success = a-different-channel
send_running = true
channel_running = a-different-channel

Customizing message colors

[priority.discord]
failed_color = "#FF0000"
running_color = "#FFFF00"
success_color = "#00FF00"
